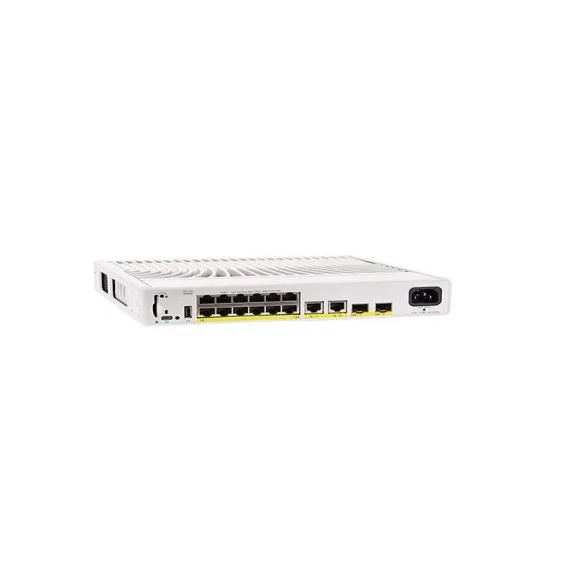

SWITCH CISCO C9200CX-12P-2X2G-E 12-port Gigabit Ethernet PoE
– Catalyst 9200CX 12-port 1G, 2x10G and 2x1G, PoE+, Network Essentials.
– Downlinks total 10/100/1000 or PoE+ copper ports: 12 ports PoE+.
– Uplink configuration: 2x 1G copper, 2x 10G SFP+ fixed uplinks.
Bảo hành 12 tháng
| Configurations | |
| Downlinks total 10/100/1000 or PoE+ copper ports | 12 ports PoE+ |
| Uplink configuration | 2x 1G copper, 2x 10G SFP+ fixed uplinks |
| Default primary power supply | 315W AC internal |
| Fans | Fanless |
| PoE+ Power with primary and secondary power supplies | |
| Primary power supply | 315W AC Internal |
| Available PoE power with single primary power supply only | 240W |
| Performance specifications | |
| Virtual Networks | 16 |
| Total number of MAC addresses | 32000 |
| Total number of IPv4 routes (ARP plus learned routes) | 14,000 (10,000 direct routes and 4,000 indirect routes) |
| IPv4 routing entries | 4,000 |
| IPv6 routing entries | 2,000 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,600 |
| Packet buffer | 16,000 flows |
| DRAM | 4 GB |
| Flash | 8 GB |
| VLAN IDs | 4096 |
| PVST Instances | 128 |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Jumbo frames | 9198 bytes |
| IP SGT binding scale | 8K |
| Number of IPv4 bindings | 8K |
| Number of SGT/DGT policies | 2K |
| Number of SXP Sessions | 200 |
| Bandwidth specifications | |
| Switching capacity | 68 Gbps |
| Forwarding rate | 50.59 Mpps |
| General | |
| Chassis Dimensions | 4.4 x 26.9 x 24.4 cm |
| Chassis + FEP + Fan Dimensions (HxWxD) | 4.4 x 26.9 x 24.4 cm |
| Weights | 2.99kg |
| Mean time between failures (hours) | 704,430hours |
| Safety certifications | – IEC 60950-1/62368-1 – UL 60950-1/62368-1 – CAN/CSA C22.2 No. 60950-1/62368-1 – EN 60950-1/62368-1 – AS/NZS 60950.1, AS/NZS 62368.1 – Class I Equipment |
| Electromagnetic compatibility certifications | – 47 CFR Part 15 – CISPR 32 Class A – CNS 13438 – EN 300 386 * – EN 55032 Class A – EN61000-3-2 – EN61000-3-3 – ICES-003 Class A – KN 32 – TCVN 7189 Class A – V-3 Class A – CISPR 35 – EN 300 386 * – EN 55035 – KN 35 – TCVN 7317 |
