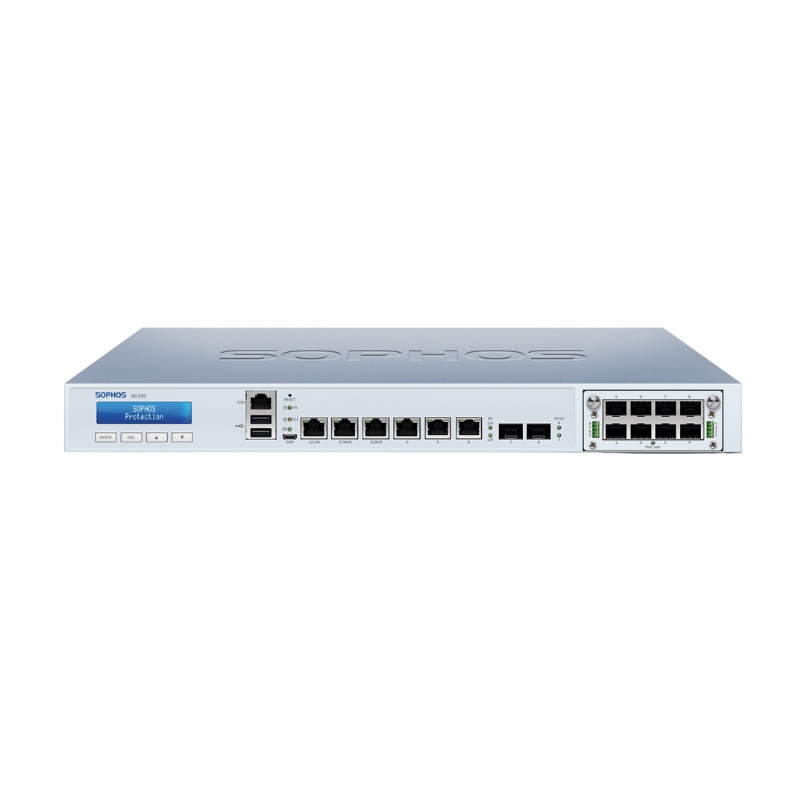

FIREWALL SOPHOS XG230
● Recommended for 201-300 User Network
● Threat Protection Throughput: 1 Gbps
● Site-to-Site VPN Tunnels: 1,420
● Concurrent Sessions: 8,200,000
● Revision Number: 2
| Model Product | Sophos XG 230 |
| Performance | |
| Firewall throughput | 32,000 Mbps |
| Firewall IMIX | 14,800 Mbps |
| IPS throughput | 4,900 Mbps |
| NGFW throughput | 4,500 Mbps |
| Threat Protection throughput | 1,000 Mbps |
| Concurrent connections | 6,570,000 |
| New connections/sec | 108,900 |
| IPsec VPN throughput | 2,100 Mbps |
| Xstream SSL decryption + Threat Protection |
280 Mbps |
| Xstream SSL Concurrent connections | 18,432 |
| Physical interfaces | |
| Storage (local quarantine/logs) | integrated SSD |
| Ethernet interfaces (fixed) | – 6 GbE copper (incl. 2 bypass pairs) – 2 GbE SFP |
| No. of expansion slots | 1 |
| Flexi Port modules (optional) | – 8 port GbE copper – 8 port GbE SFP – 2 port 10 GbE SFP+ – 4 port 10 GbE SFP+ – 2 port 40 GbE QSFP+ – 4 port GbE PoE – 8 port GbE PoE – 4 port GE copper LAN bypass |
| Connectivity Modules (optional) | – SFP DSL module (VDSL2) – SFP/SFP+ Transceivers |
| I/O ports (rear) | – 2 x USB 3.0 (front) – 1 x Micro USB (front) – 1 x USB 3.0 (rear) – 1 x COM (RJ45) (front) – 1 x HDMI (rear) |
| Display | Multi-function LCD module |
| Power supply | – Internal auto-ranging 100-240VAC, 50-60 Hz – Redundant PSU optional (external) |
| Physical specifications | |
| Mounting | 1U rack mount (2 rackmount ears included) |
| Dimensions Width x Depth x Height |
438 x 344.4 x 44 mm 17.24 x 13.56 x 1.75 inches |
| Weight | 5.2 kg / 11.46lb (unpacked) 7.7 kg / 16.98 lbs (packed) |
| Environment | |
| Power consumption | 21W, 72 BTU/hr (idle) 41W, 141 BTU/hr (full load) |
| Operating temperature | 0-40°C (operating) -20 to +80°C (storage) |
| Humidity | 10%-90%, non-condensing |
| Product Certifications | |
| Certifications | CB, UL, CE, FCC Class A, ISED, VCCI, RCM, CCC, KC, BIS |
